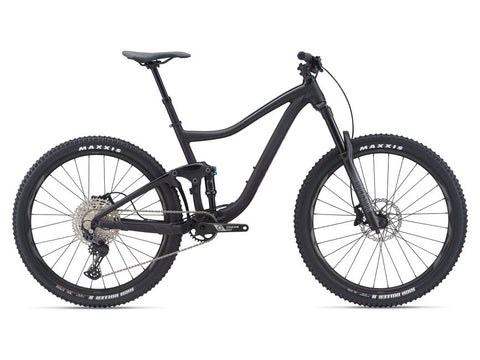

When it comes to riding hard and fast on challenging off-road terrain, there’s almost nothing this ambitious trail bike can’t do. From steep, technical climbs to rowdy descents, Trance gives you the perfect blend of quickness and control.
This is a trail bike that thrives in the most challenging conditions. The frameset is engineered with a lightweight yet super strong and stiff ALUXX SL aluminum frame. It has updated Maestro rear suspension featuring a trunnion-mount shock and Advanced Forged Composite rocker arm to soak up bumps small and large. You get 140mm of smooth, active rear travel that gives you the traction and control you need to be one with the trail. Frame geometry is designed around its 27.5 wheels, which deliver both quickness and control on rugged terrain. Up front, you have a 150mm suspension fork for even more confidence. Just pick your line, point it and go.
KEY PERFORMANCE FACTORS
27.5 agility and control
27.5-inch wheels balance agility and control, giving you the ability to roll over rugged terrain, flick the bike at speed, change lines, and explode out of corners.
Progressive suspension
Updated Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 140mm of rear travel (and 150mm up front), it has an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.
Trail-tuned chassis
The lightweight, stiff and durable ALUXX SL aluminum frameset features updated geometry to give you confidence on technical trails. The result is agile and efficient climbing plus added control for trails ranging from chunky singletrack to flowy high-spee
HIGHLIGHTS
This is a trail bike that thrives in the most challenging conditions. The frameset is engineered with a lightweight yet super strong and stiff ALUXX SL aluminum frame. It has updated Maestro rear suspension featuring a trunnion-mount shock and Advanced Forged Composite rocker arm to soak up bumps small and large. You get 140mm of smooth, active rear travel that gives you the traction and control you need to be one with the trail. Frame geometry is designed around its 27.5 wheels, which deliver both quickness and control on rugged terrain. Up front, you have a 150mm suspension fork for even more confidence. Just pick your line, point it and go.
ADVANCED COMPOSITE TECHNOLOGY
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
ADVANCED FORGED COMPOSITE TECHNOLOGY
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
MAESTRO SUSPENSION TECHNOLOGY
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
OVERDRIVE
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
TUBELESS SYSTEM
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizes: S, M, L, XL
Colors: Matte Black/Gloss Black/Chrome
Frame: ALUXX SL-Grade Aluminum, 140mm Maestro suspension
Fork: RockShox 35 Gold, 150mm, Boost 15x110 QR, tapered, custom tuned for Giant
Shock: Fox Float DPS Performance, 185/52.5, custom tuned for Giant
Handlebar: Giant Connect Trail, 31.8
Stem: Giant Contact
Seatpost: Giant Contact Switch dropper post with remote, 30.9
Saddle: Giant Romero
Pedals: N/A
Shifters: Shimano Deore
Front Derailleur: N/A
Rear Derailleur: Shimano Deore, Shadow+
Brakes: Shimano MT420 hydraulic 4-piston, 180mm
Brake Levers: Shimano MT401
Cassette: Shimano Deore, 12-speed, 10x51
Chain: Shimano
Crankset: Praxis Cadet Boost, 30t
Bottom Bracket: Praxis, press fit
Rims: Giant AM 27.5 wheelset, alloy, 30mm inner
Hubs: Shimano Boost [F] 15x110 [R] 12x148, sealed bearing
Spokes: Sapim
Tires: [F] Maxxis High Roller II, tubeless, 27.5x2.5, WT, 3C, EXO, TR [R] Maxxis High Roller II, tubeless, 27.5x2.4, 3C, EXO, TR
Extras: Tubeless prepared
Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
-
- S 5’4” - 5’8”
-
- M 5’7” - 5’11”
-
- L 5’10” - 6’2”
-
- XL 6’2” - 6’6”
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (inch) | 15 | 17 | 19 | 20 |
| B | SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° |
| C | TOP TUBE LENGTH (inch) | 22.8 | 24 | 24.8 | 25.8 |
| D | HEAD TUBE LENGTH (inch) | 3.9 | 4.1 | 5.1 | 5.7 |
| E | HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° | 67.0° |
| F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAIL (inch) | 4.1 | 4.1 | 4.1 | 4.1 |
| H | WHEELBASE (inch) | 44.4 | 45.7 | 46.6 | 47.6 |
| I | CHAIN STAY LENGTH (inch) | 17.1 | 17.1 | 17.1 | 17.1 |
| J | BOTTOM BRACKET DROP (inch) | 0.6 | 0.6 | 0.6 | 0.6 |
| K | STACK (inch) | 23.1 | 23.3 | 24.2 | 24.7 |
| L | REACH (inch) | 16 | 17.1 | 17.6 | 18.5 |
| M | STAND OVER HEIGHT (inch) | 27.6 | 28.5 | 30.2 | 31 |
| N | HANDLEBAR WIDTH (inch) | 30.7 | 30.7 | 30.7 | 30.7 |
| O | STEM LENGTH (inch) | 2 | 2 | 2 | 2.4 |
| P | CRANK LENGTH (inch) | 6.7 | 6.9 | 6.9 | 6.9 |
| Q | WHEEL SIZE | 27.5" | 27.5" | 27.5" | 27.5" |
