Note : Due to increasingly high demand, all bicycle sales are subject to vary in shipping/delivery times.

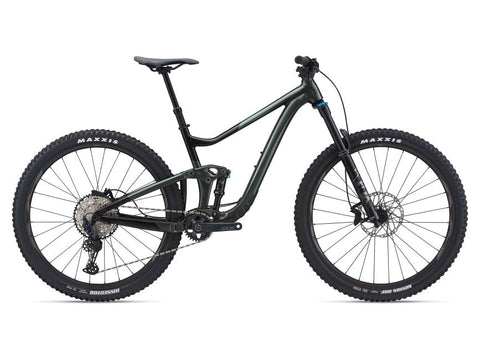

Chunky rock gardens, gnarly roots and steep, technical climbs. The all-new Trance X 29 is for those who consider the hardest section of trail their favorite part of the ride. With longer suspension travel and adjustable geometry, this aluminum trail slayer delivers hard-charging singletrack fun.
Engineered to help you ride faster and smoother on the toughest trails, this all-new 29er has a lightweight, strong and stiff aluminum chassis with 29er-specific geometry and a plush ride thanks to its advanced new suspension setup. Longer travel Maestro suspension delivers 135mm of active rear travel that pairs perfectly with a 150mm fork. The Advanced Forged Composite rocker arm has a flip-chip that allows you to adjust frame geometry and tailor the bike’s handling to your riding style and terrain. Choose steeper or slacker headtube/seattube angles and either a 30mm or 40mm bottom bracket drop to adjust the handling for your riding style and terrain. It’s all built around 29-inch wheels and lots of clearance (up to 2.5-inch tires) for maximum control on rugged trails.
KEY PERFORMANCE FACTORS
29er confidence and control
29-inch wheels roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents. Added clearance for up to 2.5-inch tires.
Progressive suspension
New Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features a two-position adjustable Advanced Forged Composite flip-chip equipped upper rocker arm for increased stiffness and strength plus lower overall frame weight.
Adjustable frame geometry
Lightweight ALUXX-SL frameset features adjustable geometry that offers 66.2 or 65.5-degree headtube and 77.9 or 77.2-degree seattube angles, resulting in 30mm or 40mm bottom bracket drop options for aggressive trail configurations.
HIGHLIGHTS
Engineered to help you ride faster and smoother on the toughest trails, this all-new 29er trail bike gives you smooth suspension performance to gobble up technical terrain. The ALUXX SL aluminum frame is lightweight, stiff and super strong, and adjustable frame geometry lets you dial in its handling for total confidence and control. Here’s a look at the key technologies in the new Trance X 29.
ADVANCED FORGED COMPOSITE TECHNOLOGY
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
FLIP CHIP - MAESTRO
The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.
ALUXX SL ALUMINUM TECHNOLOGY
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
MAESTRO SUSPENSION TECHNOLOGY
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
OVERDRIVE
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
POWERCORE
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
TUBELESS SYSTEM
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizes: S, M, L, XL
Colors: Balsam Green/Black/Chrome
Frame: ALUXX SL-Grade Aluminum front and rear triangles, 135mm Maestro suspension, flip chip
Fork: Fox 36 Float Rhythm, 150mm, GRIP damper, Boost 15x110 QR, 44mm offset, custom tuned for Giant
Shock: Fox Float DPS Performance, 185/55, custom tuned for Giant
Handlebar: Giant Contact TR35, 780x35mm, 20mm rise
Stem: Giant Contact SL 35
Seatpost: Giant Contact Switch dropper with remote, 30.9
Saddle: Giant Romero
Pedals: platform
Shifters: Shimano SLX
Front Derailleur: N/A
Rear Derailleur: Shimano SLX
Brakes: Shimano MT520
Brake Levers: Shimano MT501
Cassette: Shimano SLX, 10x51
Chain: KMC X-12
Crankset: Shimano MT510, 30t
Bottom Bracket: Shimano, press fit
Rims: Giant AM 29, alloy
Hubs: Shimano, sealed bearing
Spokes: Sapim
Tires: [F] Maxxis Minion DHF 29x2.5, 3C, EXO, TR [R] Maxxis Dissector 29x2.4, 3C, EXO, TR, tubeless
Extras: tubeless prepared
Weight : The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
-
- S 5’4” - 5’8”
-
- M 5’7” - 5’11”
-
- L 5’10” - 6’2”
-
- XL 6’2” - 6’6”
S | M | L | XL | ||
---|---|---|---|---|---|
LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
A | SEAT TUBE LENGTH (inch) | 16.9 | 16.9 | 18.3 | 19.5 |
B | SEAT TUBE ANGLE | 77.2° | 77.9° | 77.2° | 77.9° | 77.2° | 77.9° | 77.2° | 77.9° |
C | TOP TUBE LENGTH (inch) | 22.3 | 22.2 | 23.5 | 23.4 | 24.8 | 24.7 | 25.8 | 25.7 |
D | HEAD TUBE LENGTH (inch) | 3.7 | 3.9 | 4.3 | 4.7 |
E | HEAD TUBE ANGLE | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° |
F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
G | TRAIL (inch) | 4.9 | 4.7 | 4.9 | 4.7 | 4.9 | 4.7 | 4.9 | 4.7 |
H | WHEELBASE (inch) | 46.2 | 46.1 | 47.4 | 47.4 | 48.8 | 48.7 | 49.9 | 49.8 |
I | CHAIN STAY LENGTH (inch) | 17.2 | 17.1 | 17.2 | 17.1 | 17.2 | 17.1 | 17.2 | 17.1 |
J | BOTTOM BRACKET DROP (inch) | 1.6 | 1.2 | 1.6 | 1.2 | 1.6 | 1.2 | 1.6 | 1.2 |
K | STACK (inch) | 24.3 | 24.1 | 24.4 | 24.2 | 24.8 | 24.6 | 25.2 | 25 |
L | REACH (inch) | 16.8 | 17.1 | 18 | 18.3 | 19.1 | 19.4 | 20.1 | 20.4 |
M | STAND OVER HEIGHT (inch) | 28.9 | 29.3 | 28.7 | 29.1 | 29.7 | 30 | 30.6 | 30.9 |
N | HANDLEBAR WIDTH (inch) | 31.5 | 31.5 | 31.5 | 31.5 |
O | STEM LENGTH (inch) | 1.6 | 1.6 | 2 | 2 |
P | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.7 |
Q | WHEEL SIZE | 29" | 29" | 29" | 29" |
